Tuck End Auto Bottom
Quick Quote

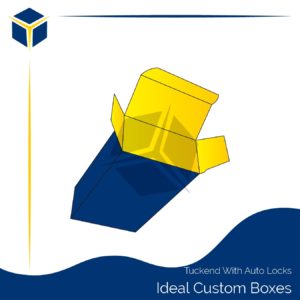

What Are Tuck End Auto Bottom Boxes?
Tuck End Auto Bottom boxes are folding cartons that combine a tuck-end opening with an automatic locking base. The bottom is designed to move into its locking position as the carton is erected rather than relying on a manually interlocked bottom such as a snap-lock structure.
This configuration can be considered for retail packaging projects where the packing process benefits from an automatic bottom setup. Final suitability depends on the product dimensions, packed weight, selected packaging specification, and any insert or window requirements.
Ideal Custom Boxes offers Tuck End Auto Bottom packaging through a custom quote process with Low MOQs. Share your dimensions, quantity, artwork, and customization requirements so the appropriate box specification can be discussed for your project.
How the Tuck End Auto Bottom Structure Works
A Tuck End Auto Bottom carton uses two separate closure areas. The tuck-end opening provides access to the product, while the auto-lock bottom is designed to form its base as the carton is erected.
This structure can reduce the amount of manual bottom folding required compared with a snap-lock bottom, where the lower flaps must be folded and interlocked during setup.
The final box layout also affects artwork placement, folds, tuck areas, and any optional insert or window. These elements should be considered together when preparing the final packaging specification.
Why Consider an Auto Bottom Structure?
The main reason to consider this style is its automatic bottom setup. Instead of manually interlocking multiple bottom flaps each time the carton is prepared, the base is designed to move into position as the box is erected. This can be useful for packaging projects where repeated carton setup is part of the packing process.
The structure should still be selected according to the packed product, dimensions, presentation requirements, and intended handling. Artwork, windows, inserts, and other customization features should also be planned around the final box layout so they do not interfere with folds or closure areas.
Assembly and Structural Considerations
Tuck End Auto Bottom cartons require erection before the product is packed. The automatic bottom is designed to form the base during this setup process, while the tuck-end closure provides access to the contents.
The box style should not automatically be treated as an outer shipping carton. Final packaging requirements depend on product dimensions, packed weight, required protection, internal movement, and the distribution method.
For products that require additional protection during carrier shipping, an outer mailer or shipping carton may still be appropriate.
When to Consider Tuck End Auto Bottom Packaging
This structure may be worth considering when:
- Your packaging requires a folding-carton format with a tuck-end opening.
- You want an automatic bottom instead of manually interlocking bottom flaps.
- The product dimensions and packed weight can be matched to an appropriate carton specification.
- Exterior panels are needed for branding, product information, or retail presentation.
- An insert or window is required and can be incorporated without interfering with the closure or bottom structure.
For heavy, fragile, liquid-containing, or carrier-shipped products, additional packaging or structural support may be necessary. Final suitability should be determined according to the complete packaging requirements rather than the box style alone.
Custom Sizing for Tuck End Auto Bottom Boxes
Custom sizing should be based on the fully packed product rather than only the unboxed item. When measuring your packaging requirements, account for anything that will remain inside the carton, including inserts, protective materials, leaflets, accessories, or other components.
For an accurate custom quote, provide:
- Required length, width, and depth
- Packed product weight
- Required quantity
- Artwork or branding files
- Insert or window requirements, if applicable
- Printing or finishing requirements
- Important packing or presentation requirements
These details help determine whether the Tuck End Auto Bottom structure is appropriate for the intended packaging application.
Artwork and Dieline Guidance
Artwork for Tuck End Auto Bottom boxes should be prepared around the final approved box layout. Logos, product information, barcodes, and other important design elements should remain clear of structural folds, cut areas, tuck sections, and bottom-locking areas.
If the packaging includes an insert or window, its position should also be considered before the artwork is finalized because these additions can affect usable panel space.
Using the final approved layout helps keep structural and printed elements properly aligned before production.
Tuck End Auto Bottom vs Tuck End Snap Lock
Both styles use a tuck-end carton format, but the way the bottom is formed is different.
1. Tuck End Auto Bottom
The base is designed to move into its locking position as the carton is erected. This reduces the need to manually interlock the bottom in the same way as a snap-lock structure.
2. Tuck End Snap Lock
A Tuck End Snap Lock box uses bottom flaps that are manually folded and interlocked to create the base.
Which Style Should You Choose?
An Auto Bottom structure may be more suitable when the packing process benefits from reducing manual bottom-folding steps. A Snap Lock structure may be considered when a manually assembled locking base fits the project’s packaging requirements.
The final choice should be based on product dimensions, packed weight, packing process, presentation requirements, and the required box construction.
How to Request a Custom Quote
1. Provide Your Packaging Requirements
Submit your required dimensions, quantity, artwork, and relevant customization details through the quote form.
2. Review the Box Specification
The packaging requirements can then be reviewed to determine the appropriate Tuck End Auto Bottom configuration for the project.
3. Review Artwork Requirements
Make sure the artwork and structural layout are aligned before production so important design elements do not interfere with folds, tuck areas, or the auto-bottom construction.
4. Approve the Project for Production
Review the final project details and commercial terms before production begins.
- Standard turnaround is 12 to 14 business days.
- Express turnaround is 6 to 8 business days.
Related Tuck-End Styles
1. Tuck End with Snap Locks
Tuck End with Snap Locks uses manually interlocking bottom flaps instead of an automatic locking base. It is a useful alternative to compare when the bottom assembly method is an important part of your packaging decision.
2. Straight Tuck End
Straight Tuck End is another folding-carton structure that uses tuck closures without making an automatic locking bottom the defining feature. It may be considered when your project does not require an auto-bottom construction.
3. Custom Tuck End Boxes
If you have not yet selected a specific tuck-end structure, review the broader Custom Tuck End Boxes range to compare different closure and bottom configurations before choosing a final style.
Request a Quote for Tuck End Auto Bottom Boxes
Planning custom packaging around an Auto Bottom structure? Send us your required dimensions, packed product details, quantity, artwork, and any insert, window, printing, or finishing requirements.
- Low MOQs are available.
- Standard turnaround is 12 to 14 business days, with express turnaround of 6 to 8 business days.
Your custom quotation can be used to confirm the final box specification, price, production details, and applicable shipping terms before production begins.
Window Patching
Special technique with a transparent plastic film covering the cut-out.
Window Die-cut
Special process where a cut-out is created on the packaging surface.
Stamping
Heat transferred foil onto paper surface.
Spot UV
UV gloss coating cured on specific areas.
Emboss
Special process that creates a raised or recessed pattern on the surface.
Deboss
Special process that creates a raised or recessed pattern on the surface.
Varnish
Inexpensive option that coats and adds surface protection.
Soft Touch
Ink coating that produces smooth surface. Cheaper alternative to lamination.
Pearlescent Coating
Give your surface extra decorative shimmer and shine.
Metallic Coating
Add an extra metallic sheen to your box surface.
Matte
Special process that creates a raised or recessed pattern on the surface.
Gloss
Thin layer that gives the box a glossy surface.
Food Coating
Inexpensive option that coats and adds surface protection.
AQ Coating
Ink coating that produces smooth surface. Cheaper alternative to lamination.
Unlimited Accessories
Meet your exact needs and preferences with easily personalized handles and buttons.
Diversified Papers
Unlimited selection of textured and colored paper.
Custom Structure
Fully customized structures tailored to your specifications.
Custom Ribbons
Wide selection of custom luxurious ribbons for you to choose from.
Custom Inserts
Versatile options for a variety of applications to keep products intact.
Kraft
Kraft is often used for packaging and ecommerce products because of its durability, elasticity, and environmental benefits.
Corrugated
A sturdy packaging material made of three layers of kraft paper. its ideal for heavey or weighted products’ packaging.
Cardboard
Its made from paper pulp. its strong, lightweight and versatile. its also recycleable.
frequently asked questions
Our standard estimated time of arrival is 8-10 business days which includes 6-8 business days for production purposes and 1-2 business days for shipping purposes.
Yes, we can expedite your order and get the boxes to you in 6-8 business days with a small fee.
Yes, We have thousands of running customers in Canada, Australia, UK and USA. Our services are available all around the world without any shipping charges.
We will provide you with a 3D digital illustration of the boxes so that you have a better idea of how your boxes will look once they are produced. Also, we offer free physical sample of your own boxes on bulk orders so that you can check if everything is as per your requirements.
You can place an order with us with these 4 easy steps:
1- Fill out the “Get A Quote” Form.
2- Upload your artwork or email it to us.
3- Provide approval on the digital proof.
4- Once the payment is made we will send your boxes to production.
You can easily track your order by call us at (+1 940 257 2957) or you can contact the sales representative who is assisting you on your project.
-
What is a Tuck End Auto Bottom box?
A Tuck End Auto Bottom box is a folding carton with a tuck-end opening and an automatic locking base. The bottom is designed to form its base as the carton is erected. The final dimensions and packaging specification should be selected according to the packed product and the requirements of the project. -
How does an Auto Bottom box work?
The bottom of the carton is designed to move into its locking position when the box is erected. This reduces the amount of manual bottom folding required compared with a snap-lock structure, where the lower flaps are folded and interlocked during setup. -
What is the difference between Auto Bottom and Snap Lock boxes?
An Auto Bottom structure forms its locking base as the carton is erected, while a Snap Lock structure requires the bottom flaps to be manually folded and interlocked. The better option depends on the product, packing process, dimensions, presentation requirements, and final packaging specification. -
Do Tuck End Auto Bottom boxes require assembly?
Yes. The carton must be erected before the product is packed. The automatic bottom is designed to form the base during this setup process, while the tuck-end section provides access to the product. -
Can Tuck End Auto Bottom box dimensions be customized?
Yes, the packaging is produced through a custom quote process, so the dimensions can be based on the requirements of the project. Provide the required length, width, and depth along with the packed product details so the appropriate specification can be determined. -
Can inserts or windows be used with this box style?
Inserts and windows may be considered depending on the final structure and project requirements. Their placement needs to work with the available panels, folds, tuck areas, and auto-bottom construction, so compatibility should be confirmed as part of the packaging specification. -
What information do I need for a quote?
Provide the required dimensions, packed product weight, quantity, artwork, and any insert, window, printing, finishing, or presentation requirements. Supplying complete project information helps determine an appropriate structure and prepare a more accurate custom quotation. -
What is the MOQ and production turnaround?
Low MOQs are available. Standard turnaround is 12 to 14 business days, while express turnaround is 6 to 8 business days. Exact project requirements and commercial terms should be confirmed through your custom quotation.
